Name: Smith Machine X5
Brand: HAJEX
SKU: SMITH-X5-792-2x
Price: 2499.95 CAD
Availability: InStock

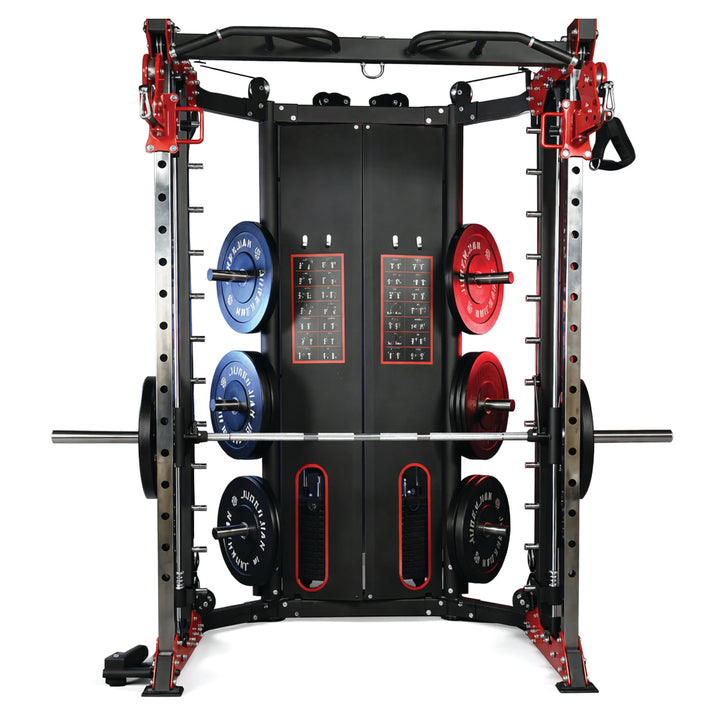

HAJEX Smith Machine X5 with dual weight stacks

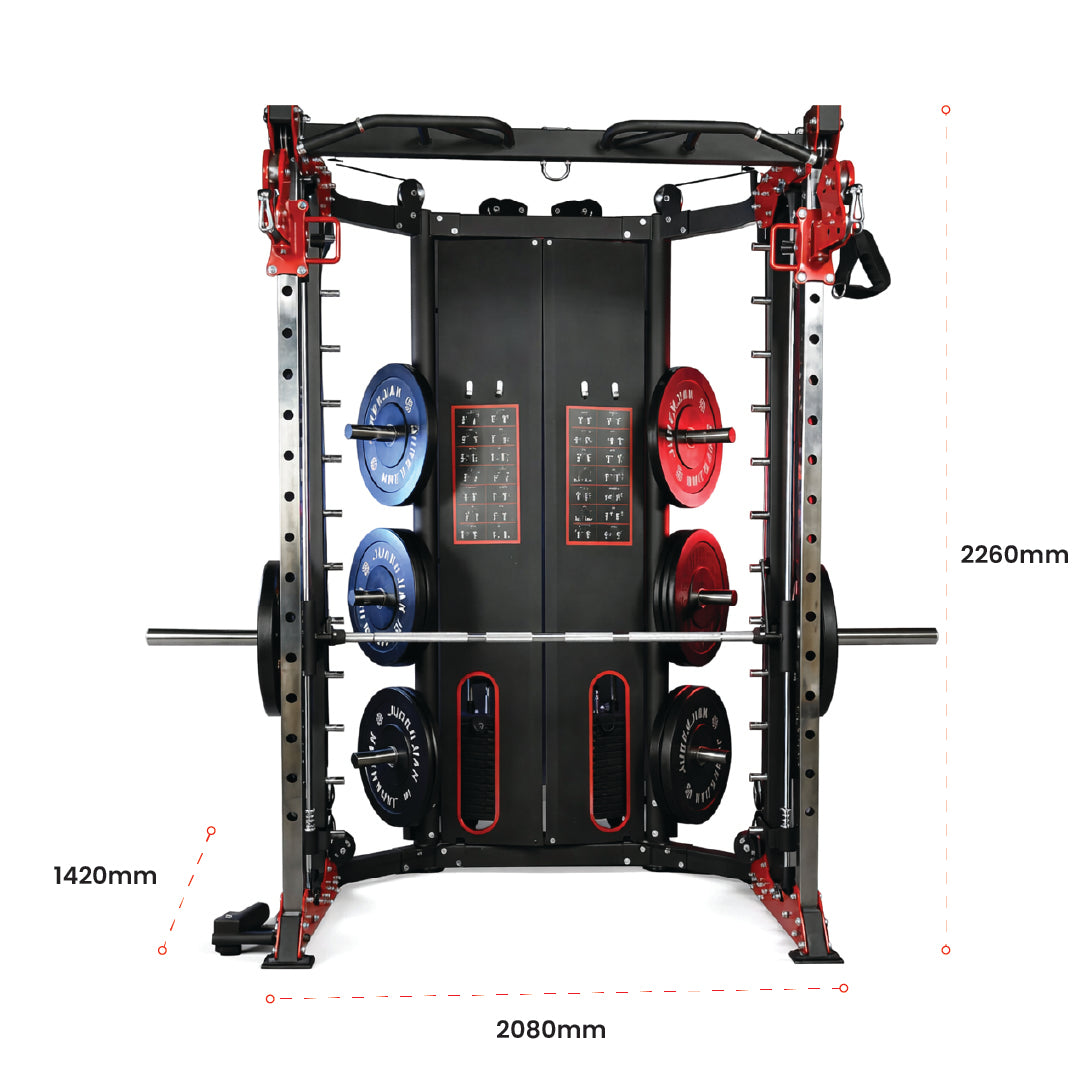

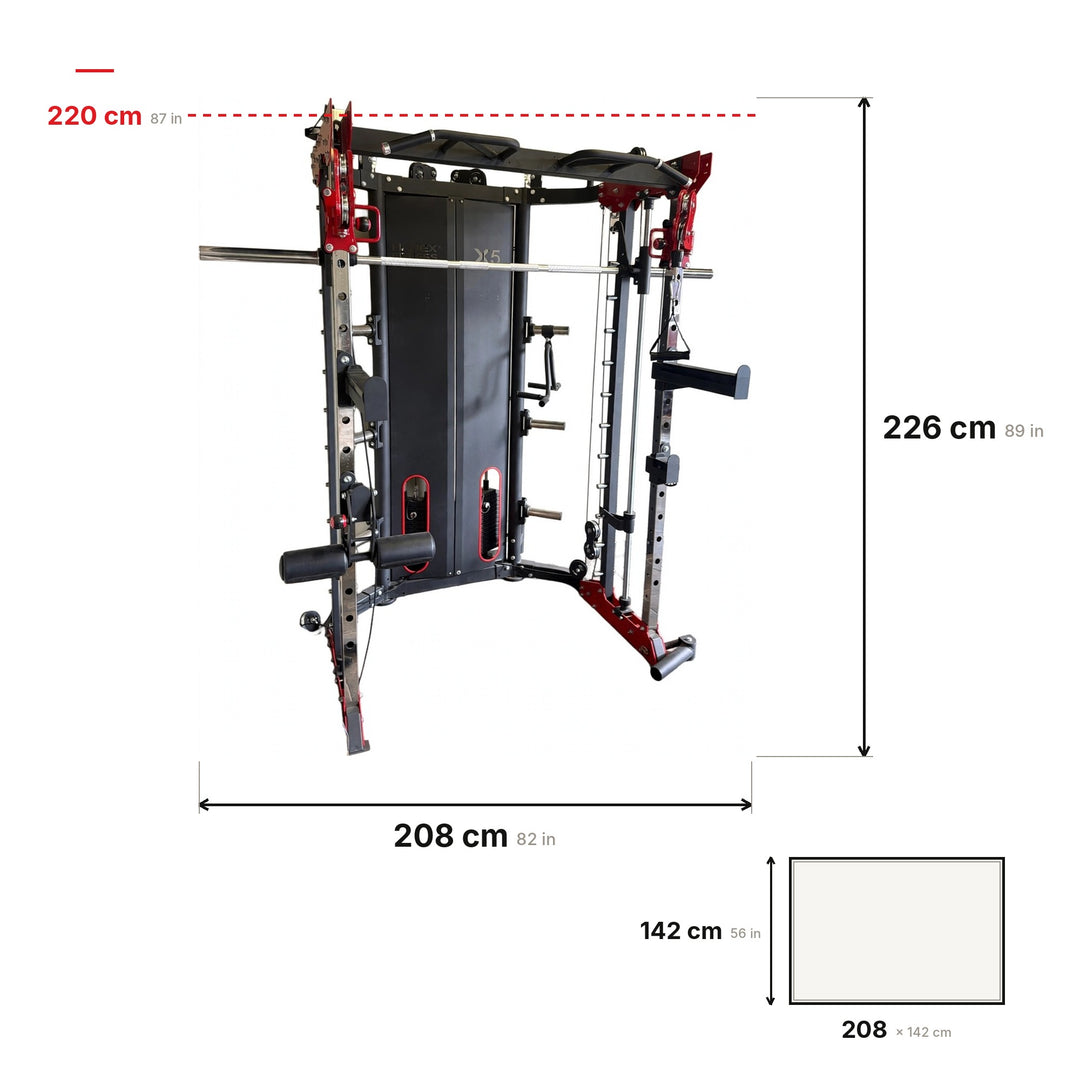

HAJEX Smith Machine X5 dimensions: 208 × 142 × 226 cm (82 × 56 × 89 in), pull-up bar at 220 cm

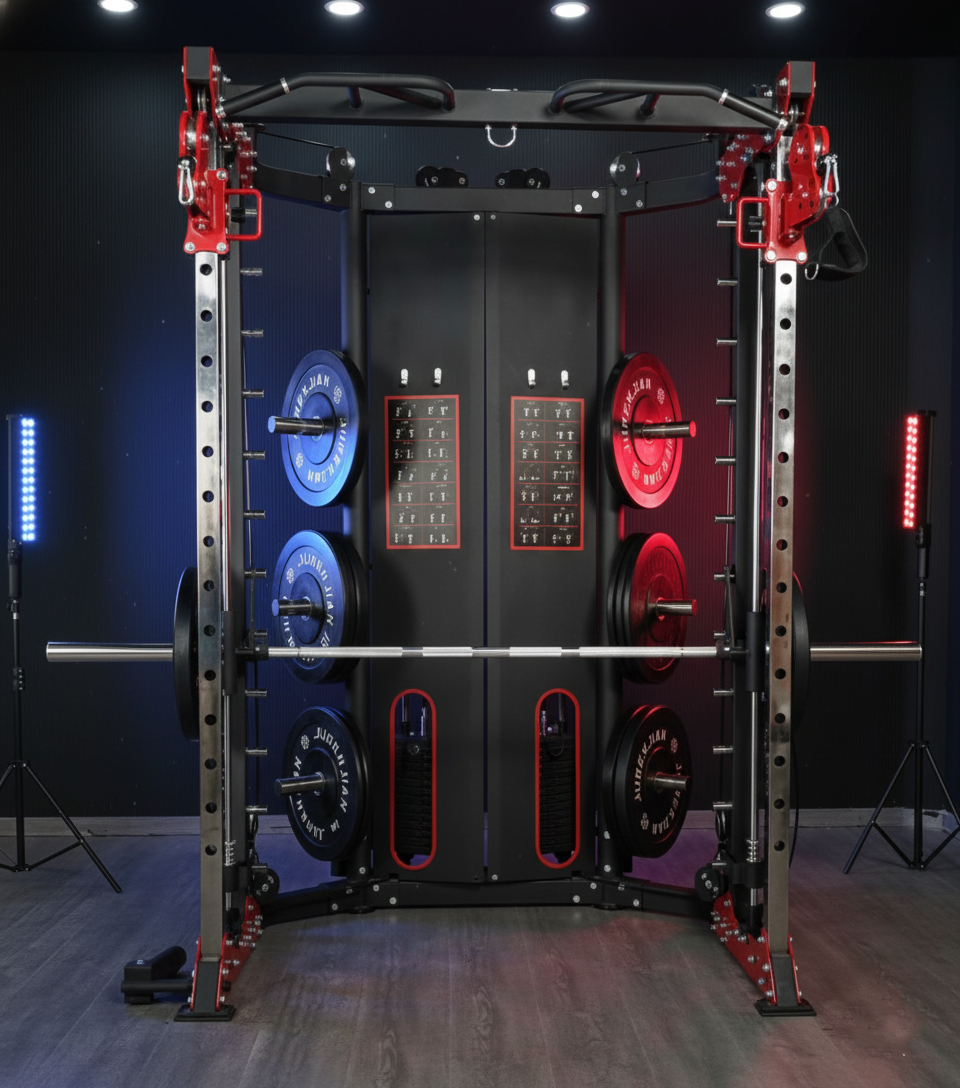

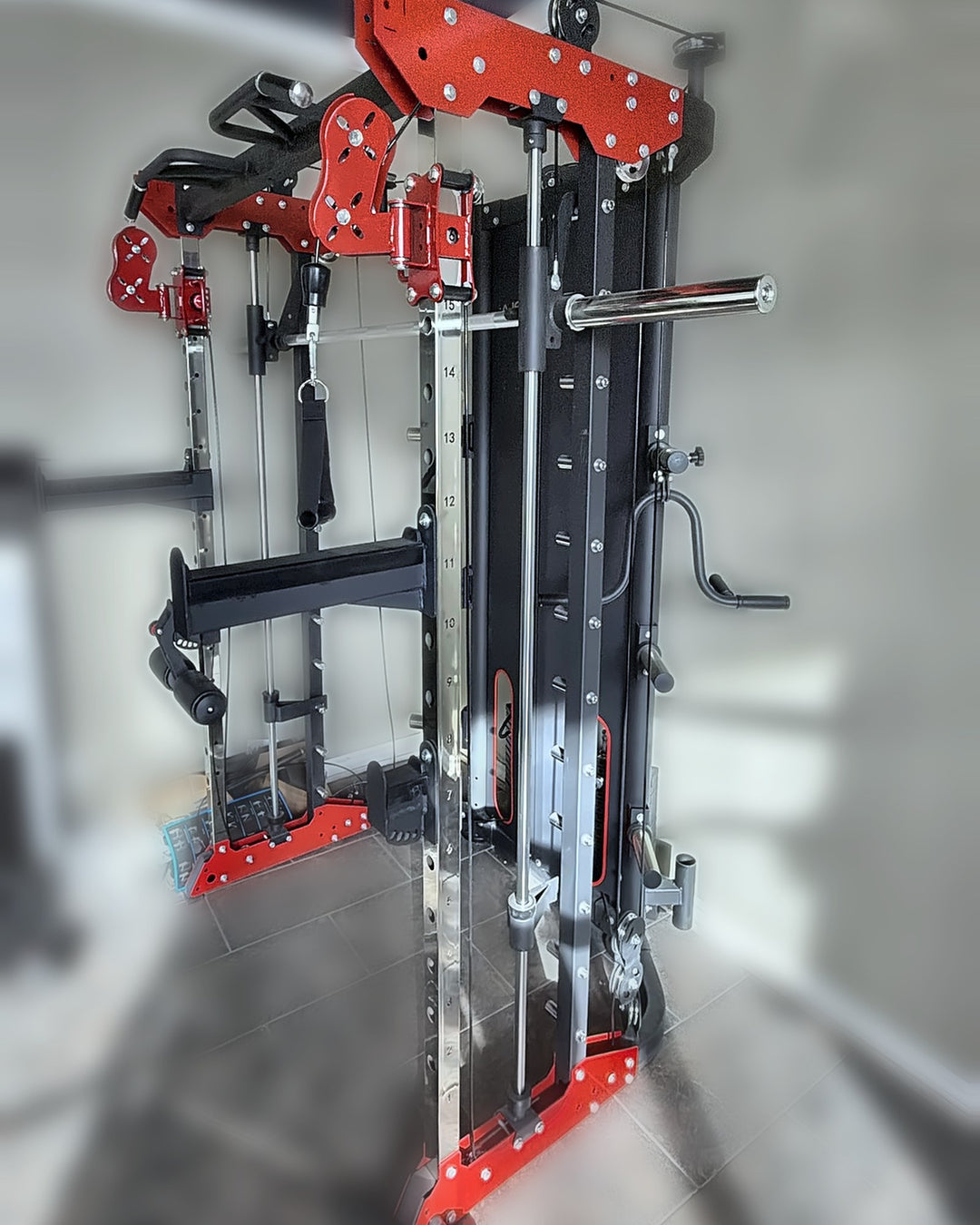

HAJEX Smith Machine X5 set up in our Montreal store

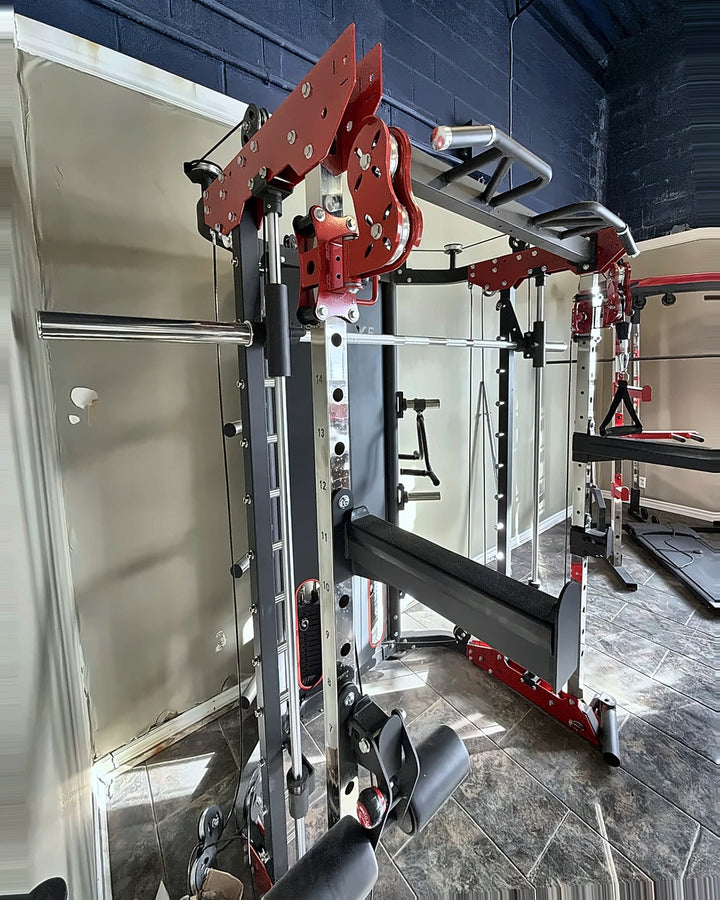

HAJEX Smith Machine X5 in our Montreal store, side view

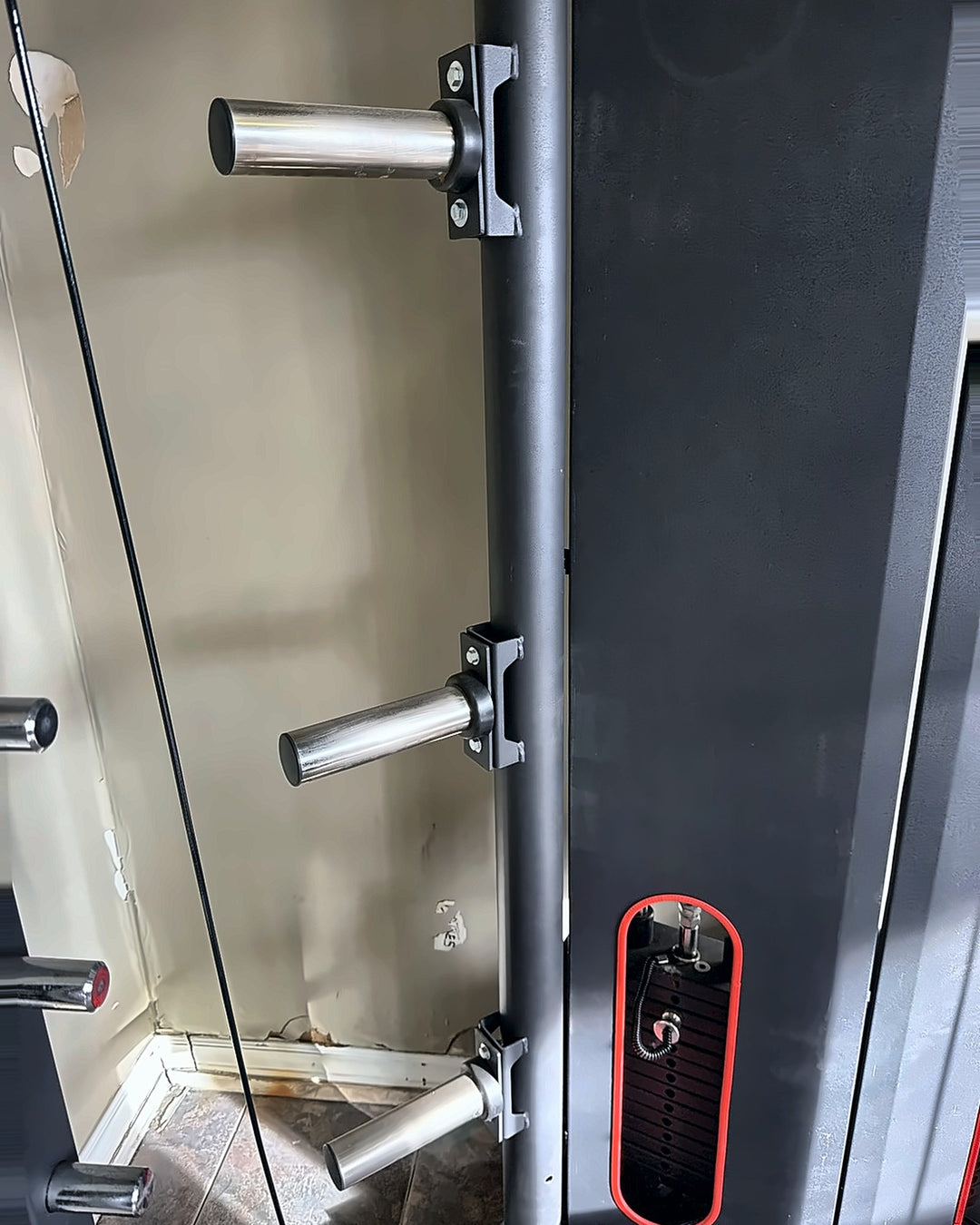

Smith Machine X5 plate storage posts, 2-inch Olympic

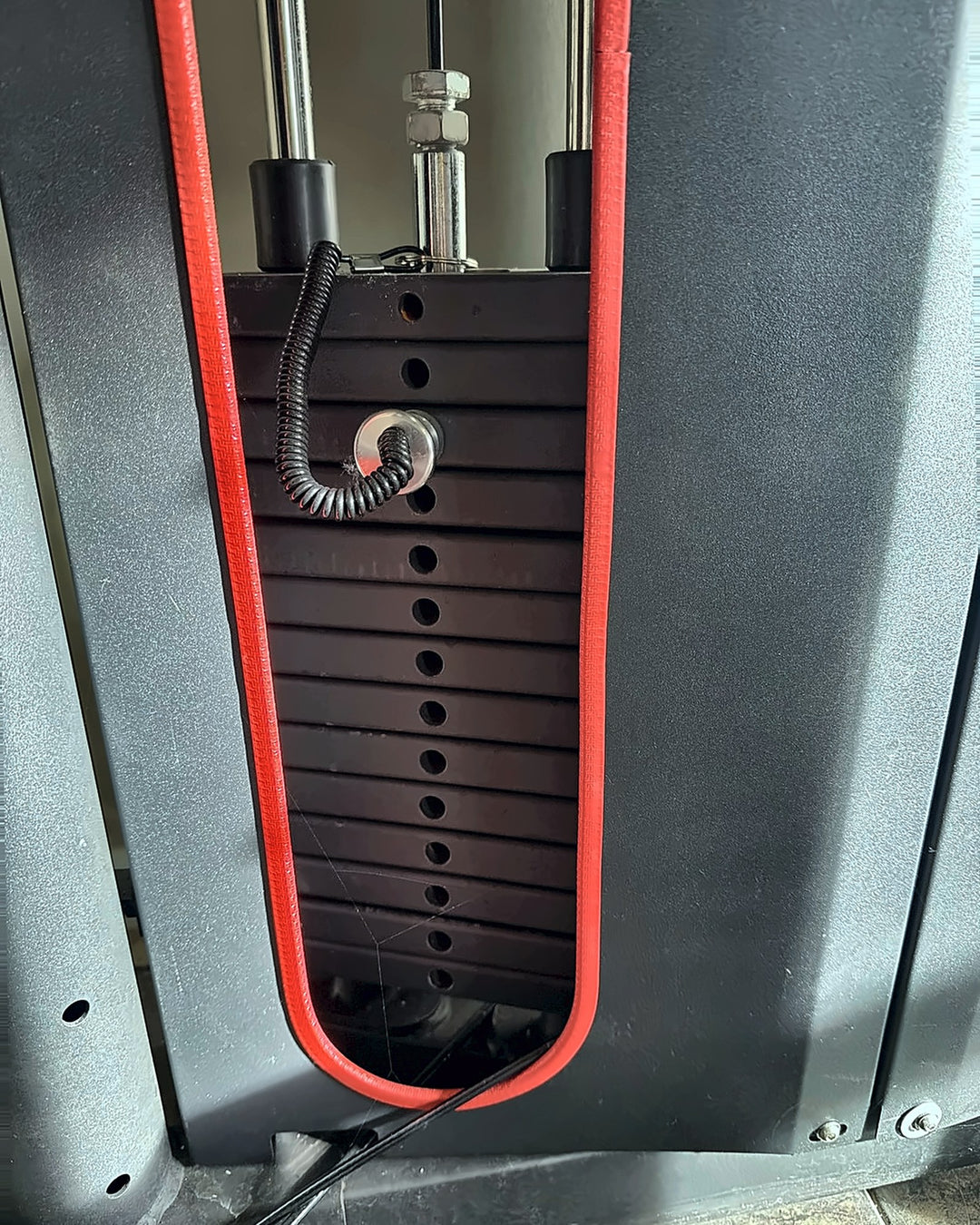

Smith Machine X5 weight stack: 14 plates, 70 kg per side, pin-select

$3,749.95 $2,499.95 Save 33%

Shipping calculated at checkout.

In stock, ready to ship 14 in Montréal
Backordered, shipping soon Lock in the price now before it increases.

What's included

Notes

📦 Packaging & Weight
Net Weight (N.W.): 360 kg → 794 lb
Gross Weight (G.W.): 395 kg → 871 lb
Stack Weight: 70 kg x 2 (154 lb each side)
🔩 Material
Tube Size: 75 × 75 × 2.5 mm
→ 2.95″ × 2.95″ × 0.10″
📐 Product Dimensions
2080 × 1420 × 2260 mm
→ 81.9″ × 55.9″ × 89.0″ (L × W × H)
📦 Package Dimensions
2265 × 720 × 395 mm
→ 89.2″ × 28.3″ × 15.6″ (L × W × H)

SHIPS WITH
HAJEX Bolt

30 DAYS RETURN
Available

FREE PICK UP
2 Locations

WARRANTY
12 Months

The largest steel section in the range, in the smallest package. The X5 is built on 75 × 75 × 2.5 mm tubing — a bigger profile than anything else we make — with 308 lb of pin-select stacks integrated into the frame.

What's Included

308 lb integrated weight stacks — 70 kg × 2, pin-select. Drop the pin and lift; no plates to load, no plates to strip.
Multi-grip pull-up station — wide, narrow and neutral grips
Integrated storage and barbell racks
Full assembly manual — view it before you buy

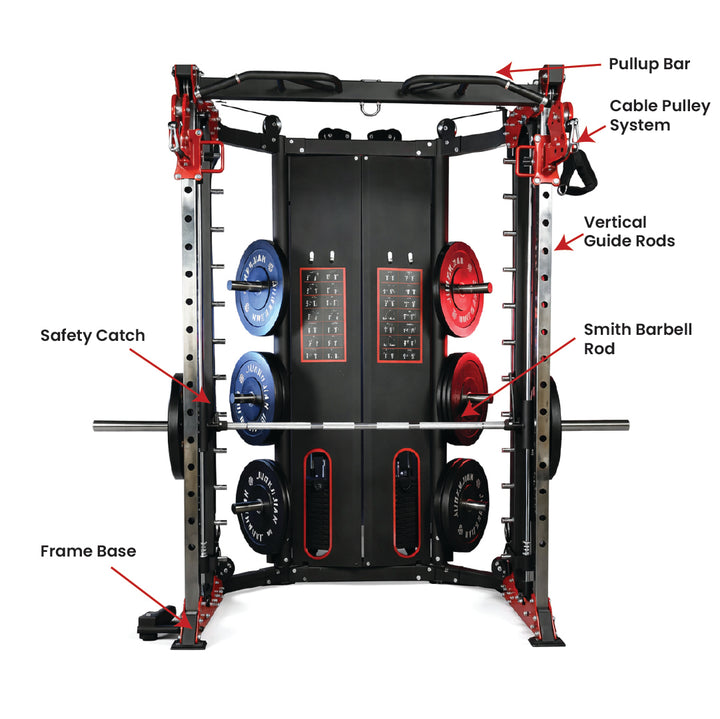

Built Around the Frame

75 × 75 × 2.5 mm steel tubing — the largest section profile in the HAJEX range
Guided Smith bar for squats, bench press, lunges and overhead work
Precision-welded joints with a powder-coated finish
Compact footprint — a full station at 2080 × 1420 mm

Will It Fit?

Floor space 208 × 142 cm (82 × 56 in), height 226 cm (89 in) — allow a 2.3 m ceiling. The pull-up bar sits at 220 cm. A flat or adjustable bench fits inside the frame.

Specifications

Machine size	2080 × 1420 × 2260 mm (82 × 56 × 89 in)
Pull-up bar height	220 cm (87 in)
Tube	75 × 75 × 2.5 mm
Stacks	70 kg × 2 (154 lb per side, 308 lb total), pin-select — 14 plates of 5 kg per side
Cable ratio	2:1 — the handle travels 20 cm for every 10 cm of stack travel
Plate storage	6 posts, 2-inch Olympic — 1-inch plates do not fit
Bench inside the frame	Yes
Net weight	360 kg · Gross weight: 395 kg
Crate size	2265 × 720 × 395 mm
Measured on	The unit set up in our Montreal store, October 2026

Where the X5 Sits in the Range

Every machine from X2 up runs pin-select stacks. Choose the X5 for its steel section and compact footprint, the X4 for the largest stacks at 440 lb, or the X3 for the heaviest frame at 660 lb of 3.0 mm steel.

Delivery

Ships in a wooden crate on a pallet by curbside freight — this is not a parcel delivery. Plan for a second pair of hands and a tool to break the crate down.

Warranty: 12 months

Please Note — Product Images:

Photos are for reference. Production units carry a laser-cut HAJEX logo on the frame along with the X5 model marking.

Shipping, pickup and delivery, explained on one page →

Shipping — calculated at checkout from your order weight
and delivery region, for both Canada and the US. No percentage of order value.

Van delivery — our own van from Anjou: $50 in Montréal, Laval and the South Shore,
$100 to $249 further out, as far as Québec City, Ottawa and Gatineau. In the Greater Toronto
area, our Toronto driver delivers for $50 to $150 within 10 business days (order minimums apply).
Shown at checkout next to the carrier rate if your address qualifies; local delivery around
Delta too. Free pickup at both warehouses by appointment.

US customers — we ship DDP. Import duties, customs and
brokerage are prepaid by HAJEX and included in the shipping shown at checkout.
Nothing more to pay on delivery.

Heavy orders — over 10,000 lb, you get a freight quote instead
and no shipping is charged at checkout. We'll find the best rate, or you can
use your own carrier.

Transit — Canada 1–7 business days depending on province.
US 4–11 business days depending on region. Add 1–2 business days handling.

Returns — 30 days from receipt. Change-of-mind returns and cancellations are issued as store credit, minus a restocking fee of up to 35% and the non-refundable card processing fee (about 3% for Canadian cards, 5.1% for US cards). Orders not picked up are charged a $3/day storage fee after the first 2 business days. If we ever need to revise your shipping or duty cost, you can cancel for a full refund with no fees.

Full terms: Shipping Policy
· Return Policy
· TOS

support@hajex.com · toll-free 855-396-9333

SMITH-X5-792-2x

Compare

Which Smith machine?

Six machines, two ways to load them: plate-loaded (bring your own Olympic plates) or pin-select weight stacks built into the frame. Every one takes a bench inside the frame and carries a 12-month warranty.

Model	Smith Z1 $799.95$1,349.95 In stock View	Smith X1 $999.95$1,499.95 Sold out View	Smith X5 $2,499.95$3,749.95 In stock You're looking at this one	Smith X2 $2,599.95$3,749.95 In stock View	Smith X3 $2,699.95$3,749.95 In stock View	Smith X4 $2,799.95$3,749.95 In stock View
Best for	Home and small studios — every attachment in the box, plate-loaded. Rated 250 lb on the bar.	Entry price, ten attachments. Bring your own plates and bar.	The biggest steel section in the range in the smallest footprint, with 308 lb of stacks built in.	Our entry stack machine — 264 lb of pin-select weight built in, nothing else to buy.	Our heaviest frame — 660 lb of 3.0 mm steel. The one we put on commercial floors.	The most weight in the machine — 440 lb of stacks, the largest we build, plus the barbell.
Loading	Plate-loaded, 2-inch Olympic	Plate-loaded, 2-inch Olympic	Pin-select weight stacks	Pin-select weight stacks	Pin-select weight stacks	Pin-select weight stacks
Weight included	No — bring your own plates	No — bring your own plates	Yes — 308 lb of stacks (2 × 70 kg)	Yes — 264 lb of stacks (2 × 132 lb)	Yes — 330 lb of stacks (2 × 165 lb)	Yes — 440 lb of stacks (2 × 220 lb)
Olympic barbell included	No (guided Smith bar built in, about 30 lb)	No	No	No	Yes — 2-inch Olympic barbell	Yes — 2-inch Olympic barbell
Weight stacks	None — load the pulley horns with plates, up to 100 lb per horn	None	2 × 154 lb (70 kg), 14 plates of 5 kg per side — cable ratio 2:1	2 × 132 lb, 12 plates of 11 lb per side — cable ratio 1:1	2 × 165 lb, 20 plates of 8.25 lb per side — cable ratio 1:1	2 × 220 lb, 20 plates of 11 lb (5 kg) per side — cable ratio 1:1
Frame	Steel frame, black and red powder coat; freestanding, no anchoring	70 × 50 × 2 mm commercial-grade steel tube	75 × 75 × 2.5 mm steel tube — the largest section we make; powder-coated	High-gauge powder-coated steel, 528 lb; linear bearings; wide base with non-slip feet	3.0 mm steel, 660 lb — the heaviest gauge in the range; extra-wide reinforced base	High-gauge reinforced steel, 605 lb; extra-wide base
Total weight	234 lb (106 kg) shipping weight	—	794 lb (360 kg) net, stacks included	792 lb (528 lb frame + 264 lb stacks)	990 lb (660 lb frame + 330 lb stacks)	1,045 lb (605 lb frame + 440 lb stacks)
Floor space	120 × 119 cm base (47 × 47 in); 183 cm (72 in) wide with the bar	—	208 × 142 cm (82 × 56 in)	210 × 155 cm (83 × 61 in)	190 × 188 cm (75 × 74 in); 106 cm (42 in) deep inside the frame	119 × 178 cm (47 × 70 in)
Height	215 cm (84.5 in)	—	226 cm (89 in)	220 cm (87 in)	238 cm (94 in) to the top of the pull-up bar; frame 225 cm	236 cm (93 in)
Pull-up bar	Multi-grip, angled and neutral grips	Yes — 2 pull-up handles	Multi-grip station at 220 cm — wide, narrow and neutral grips	Multi-grip bar at 200 cm	Multi-grip bar at 238 cm	Multi-grip bar at 200 cm
Cables and pulleys	Lat pulldown and low pulley, plate-loaded	Multi cable pulley system: high pull, biceps handle, deadlift extension	Stack-driven cables, 2:1 ratio	Stack-driven cables, 1:1 ratio	Stack-driven cables, 1:1 ratio; band pegs; landmine-compatible	Stack-driven cables, 1:1 ratio; band pegs; landmine-compatible
Safety	Limit Device bottom stops and 9 lockout positions	Self-balancing guided bar	Guided Smith bar	Adjustable safety stops; guided bar with multiple racking positions	Adjustable J-hooks, spotter arms and safety lock	Adjustable J-hooks, spotter arms and safety lock
Plate storage	2 storage horns (plus 2 working horns)	Weight storage posts	6 posts, 2-inch Olympic	4 posts, 2-inch Olympic	2 posts, 2-inch Olympic	2 posts, 2-inch Olympic
In the box	Multi-grip pull-up bar, lat bar, EZ curl bar, 2 J-hooks, 4 foam rollers, all hardware and tools	High pull handle, deadlift extension, short and long straight handles, 2 pull-up handles, 2 bar posts, biceps handle	Multi-grip pull-up station, storage and barbell racks, full assembly manual	Multi-grip pull-up bar, adjustable safety stops, plate storage posts	2-inch Olympic barbell, J-hooks, spotter arms, multi-grip pull-up bar, band pegs, storage posts	2-inch Olympic barbell, J-hooks, spotter arms, multi-grip pull-up bar, band pegs, storage posts
Bench fits inside	Yes — 40 in (102 cm) inside the cage	Yes	Yes	Yes	Yes	Yes
Delivery	4 numbered boxes, none over 63 lb — parcel delivery	5 numbered boxes, none over 99 lb — parcel delivery	Wooden crate on a pallet, curbside freight — crate 2265 × 720 × 395 mm, 395 kg gross	Wooden crate on a pallet, curbside freight	Wooden crate on a pallet, curbside freight	Wooden crate on a pallet, curbside freight — over 1,000 lb, the heaviest machine we ship
Warranty	12 months	12 months	12 months	12 months	12 months	12 months
