— Before you order
Will it fit your room?
7 ft 1 in
CEILING NEEDED
Clears a standard 8 ft basement or garage. Measure first if yours is a true 7 ft.
47 × 47 in
FLOOR FOOTPRINT
Allow about 3 ft front and back for loading plates and pulling the lat bar.
No anchoring required. The Z1 stands on its own base. Nothing gets drilled into a finished basement floor, a garage slab or a rented unit — which is not true of most commercial racks and functional trainers in this class.
— Pre-shipment inspection
An inspector saw this machine before you did.
HAJEX hired an independent inspection agency — not our own QC team, and not the factory’s. They pull finished sets off the production line, drop the boxes, tape-test the paint, build one using only the tools that ship in the carton, and write down everything. Including what they don’t like.
Passed
OVERALL
CONCLUSION
0
CRITICAL
+ MAJOR
2
MINOR MARKS
ALL COSMETIC
Sampled set assembled on the inspection floor
SAMPLED SET, ASSEMBLED ON THE INSPECTION FLOOR
Six tests, on the floor
Not a lab, not a rendering. A tape measure, a roll of 3M tape and a clipboard.
Packed cartons on the inspection floor
01 · PASSED
Carton drop
One corner, three edges, all six faces. 5-ply board.
Assembly test
02 · PASSED
Assembly
Built from the box with the tools in the box.
Function test under load
03 · PASSED
Function
Every station used under load, by a person.
3M tape adhesion test on the powder coat
04 · PASSED
Coating
3M tape pulled off the powder coat. Nothing lifted.
Rub test with a white cloth
05 · PASSED
Rub
White cloth, hard rub. No colour transfer.
Cargo checked on the warehouse floor
06 · PASSED
Odour
Boxes opened and checked for chemical smell.
QUANTITY · CONFORMED WORKMANSHIP · PASSED MEASUREMENTS · PASSED PACKAGING · CONFORMED ANSI/ASQ Z1.4 · AQL 2.5/4.0
Four boxes, measured
Packing spec against a tape. This is the part that decides whether it gets through your door.
BOXSPEC (CM)MEASURED (CM)
Ctn 1112 × 47 × 16.5113 × 45 × 16
Ctn 297 × 47 × 1098.4 × 45.5 × 10
Ctn 3191 × 31 × 9192 × 29.6 × 9.7
Ctn 4204 × 39 × 10204.5 × 38 × 10.5
Every box opened was 5-ply corrugated. Shipping marks, labels and assembly instructions all checked against the order. Box 4 is 6 ft 9 in long — bring a van or an SUV with the seats down if you are collecting in person.
— Nothing hidden
What they didn’t like
Pin-sized pores in the powder coat
PAINT SURFACE PORES
MINOR
Paint shedding on a panel edge
PAINT SHEDDING
MINOR
Two cosmetic marks on the sampled sets, both logged as minor, both inside the agreed allowance. The allowance for critical and major defects is zero — structure, welds, bearings and hardware don’t get to be “minor”, and both came back at zero.
Finish mark on yours? support@hajex.com — 30-day returns apply either way.
INSPECTED · 11 MAY 2026
RESULT · PASSED
IN STOCK · DELTA BC + ANJOU QC

HAJEX Smith Machine Z Series - Model Z1

hajex-smith-z1-106kg

$1,349.95 $899.95 Save 33%
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Back in stock October 15, 2026
SHIPS WITH
HAJEX Bolt
30 DAYS RETURN
Available
FREE PICK UP
2 Locations
WARRANTY
12 Months
Plate loaded
Takes 2″ Olympic
plates. 50 mm.

Bar sleeves, pulley horns and storage horns are all 50 mm — the same size that fits a 7 ft Olympic bar. If the hole in your plate measures 2 inches across, it fits the Z1.

Using 1″ standard plates? They won't fit without a sleeve adapter. Measure the hole in your plate before ordering — you need 2 inches / 50 mm.

Recommended working loads

Built for home and small-studio training. These are the loads we stand behind.

250 lb
On the Smith bar
Squats, presses, shrugs, calf raises
250 lb
On the pull-up bar
Bodyweight plus a weighted belt
100 lb
Per loading horn
Lat pulldown and low pulley

Training heavier than this? The X-series machines carry more.

Four 50 mm horns, two jobs

2 working horns

Load these to set resistance on the lat pulldown and low pulley. Add a plate, add weight. Nothing to select, nothing to cap you.

2 storage horns

Keep the rest of your plates off the floor and an arm's reach from the bar.

Every attachment is in the box

On most machines these are a second order and another few hundred dollars.

Multi-grip pull-up bar — angled and neutral grips
Straight lat pulldown bar — rubber grips, swivel bracket
EZ curl bar — cambered, easy on the wrists
2 × J-hooks — protective sleeves keep your bar knurling sharp
4 × foam rollers
Complete hardware pack — every bolt, nut and washer, plus 2 wrenches and 2 hex keys. You won't need your own tools.
Plates and a barbell are not included. The Z1 is the frame. If you'd rather the weights arrived with the machine, the X2–X5 ship with plates or stacks.
About the product images Some images on this page are 3D renderings, used to show layout and scale. The specifications table and the included-attachments list above are the definitive description of what ships. If a component appears in a rendering but is not named in those lists, it is not part of the machine. Want to see the actual unit before you order? Book a live video walkthrough on WhatsApp at +1 855-396-9333.

Built to train hard

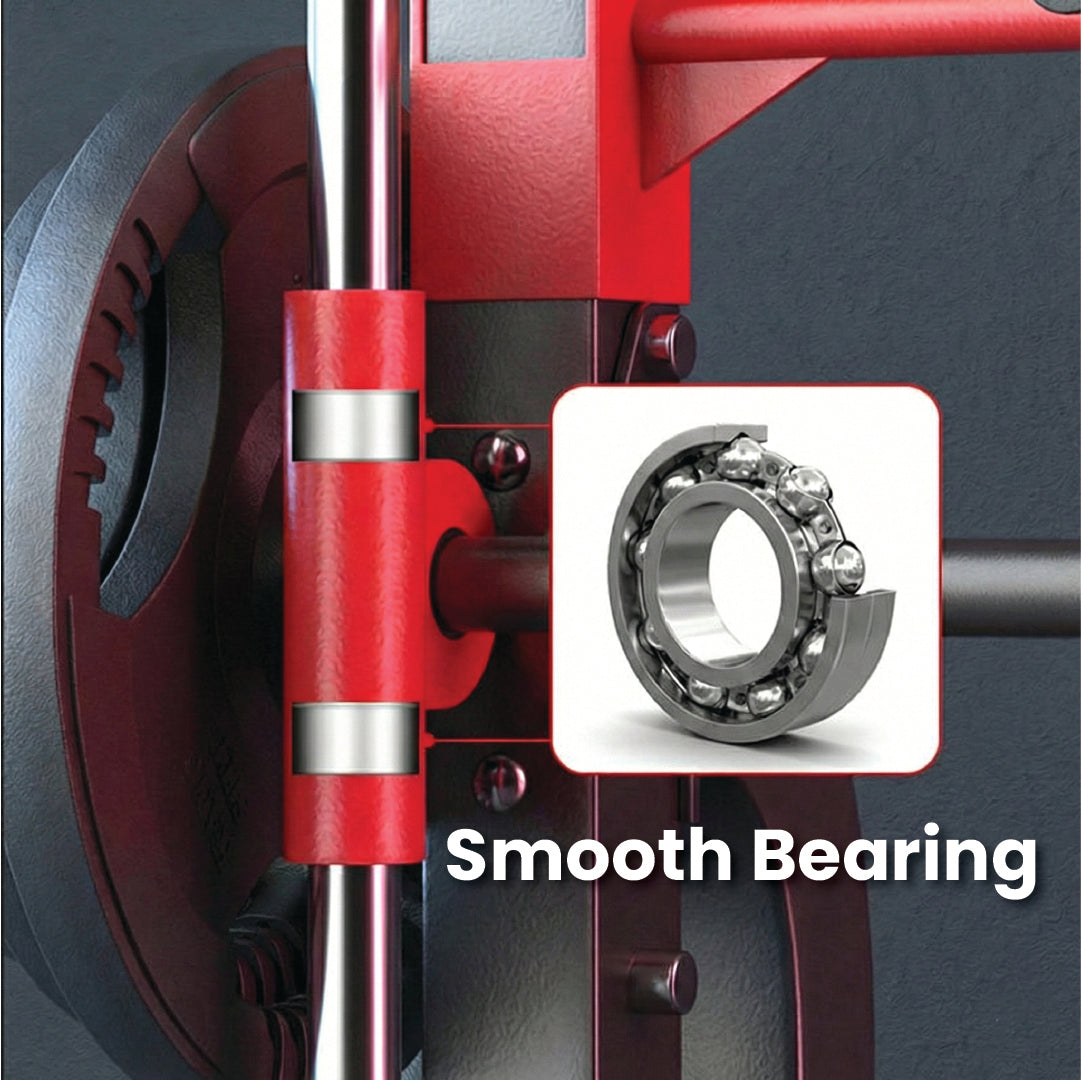

Linear ball bearings

Not plastic bushings. A silent, friction-free bar path that feels like free weights with the stability of a machine.

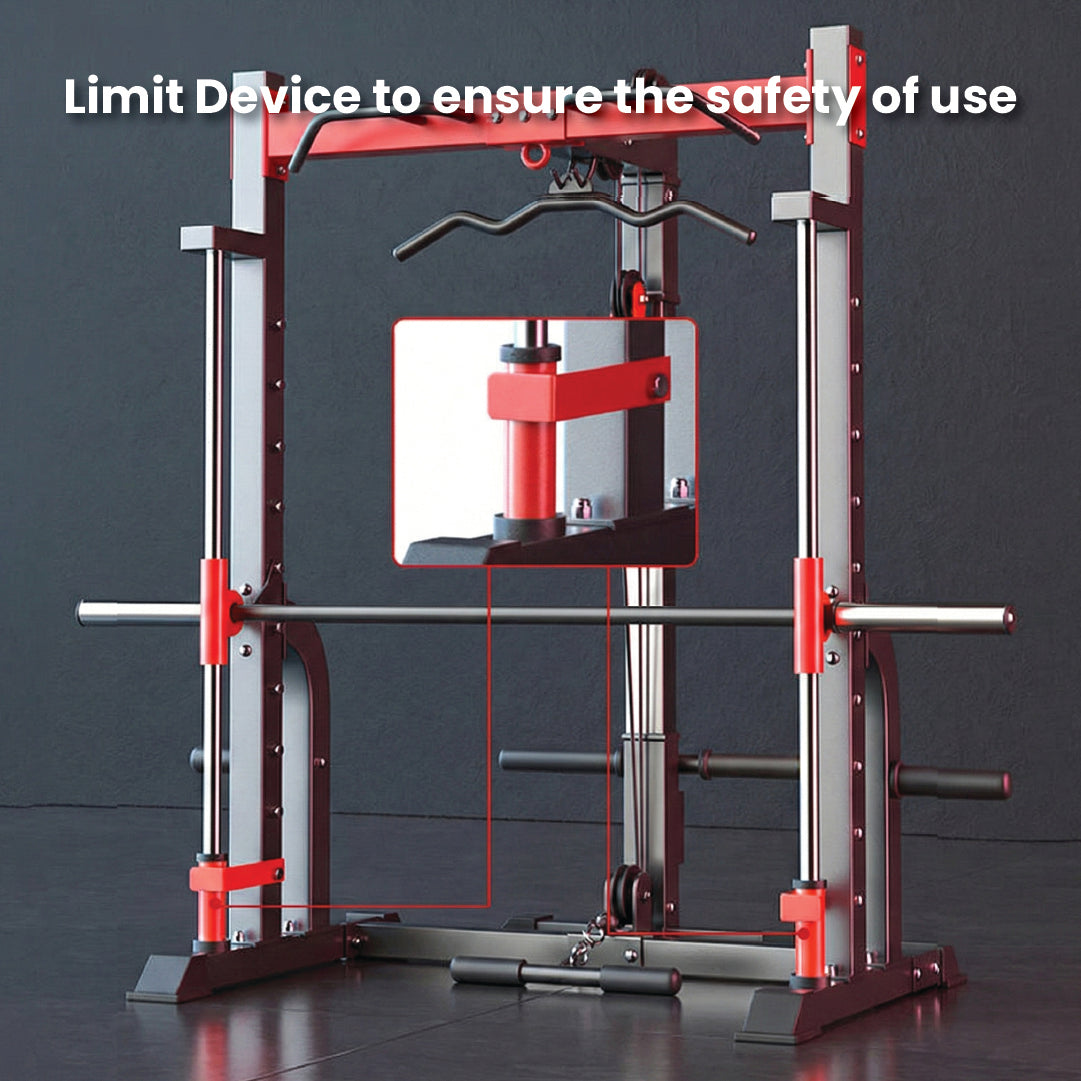

Train to failure alone

The Limit Device sets bottom stops to your exact range of motion, backed by 9 lockout positions. No spotter needed.

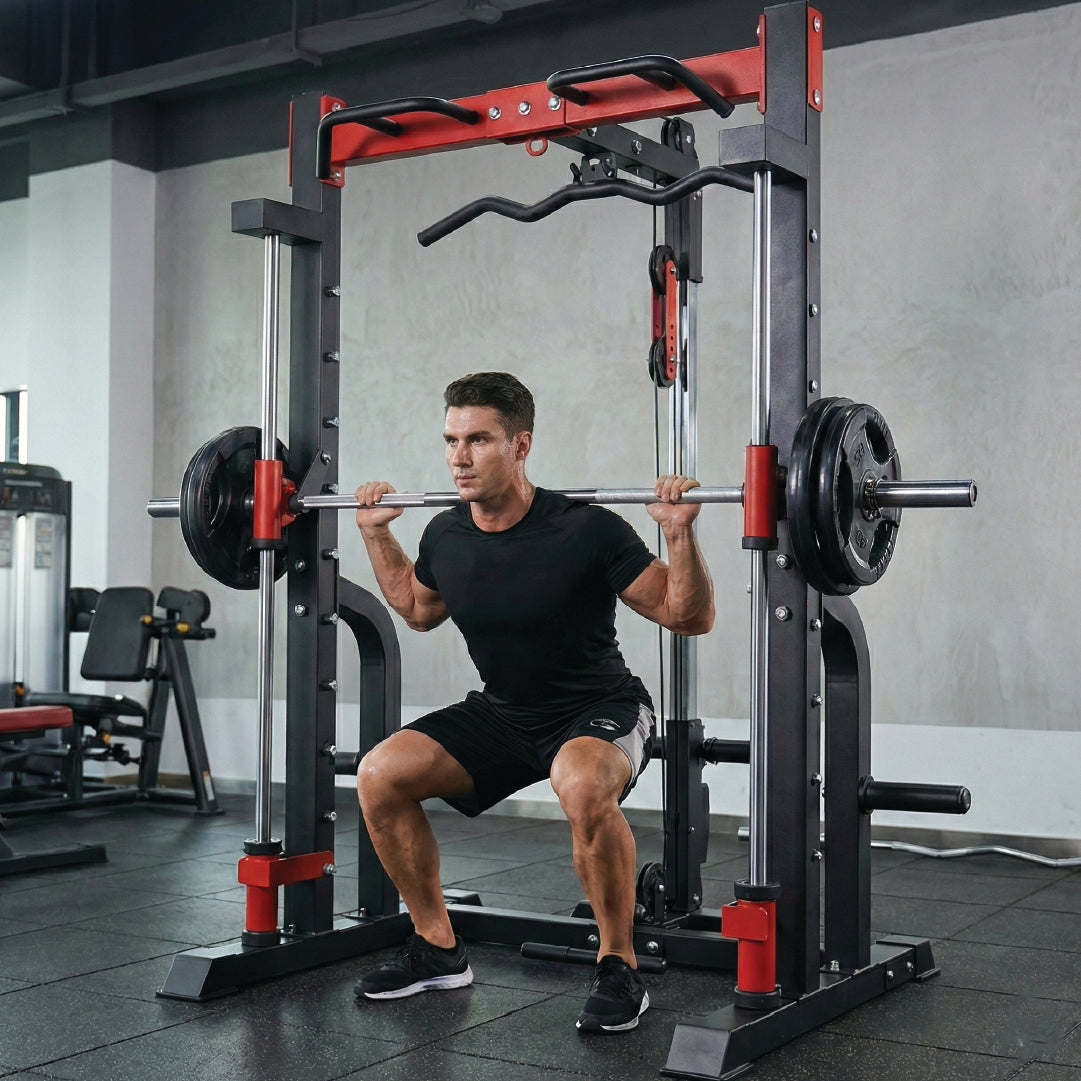

A full gym in one frame

Lat pulldown and pull-up bar up top, low pulley for rows and curls, squats and lunges inside the cage.

Specifications

Plate compatibility
2 inch / 50 mm Olympic
Loading
Plate loaded — no weight stack
Smith bar weight
Approx. 30 lb
Recommended load, bar
250 lb
Recommended load, pull-up bar
250 lb
Recommended load, per horn
100 lb
Plate horns
4 × 50 mm (2 working, 2 storage)
Bearings
Linear ball bearings

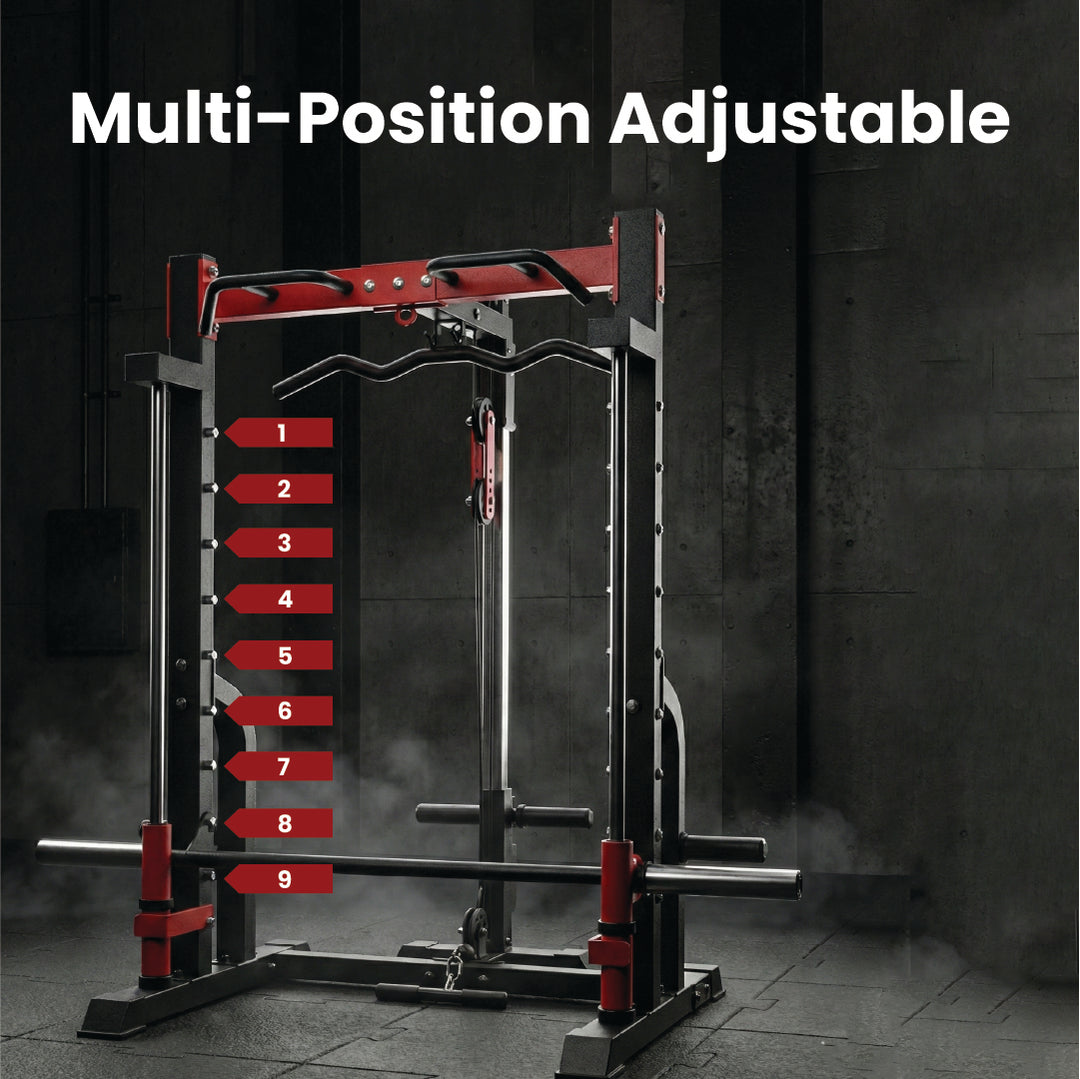

Lockout positions
9
Safety stops
Adjustable Limit Device

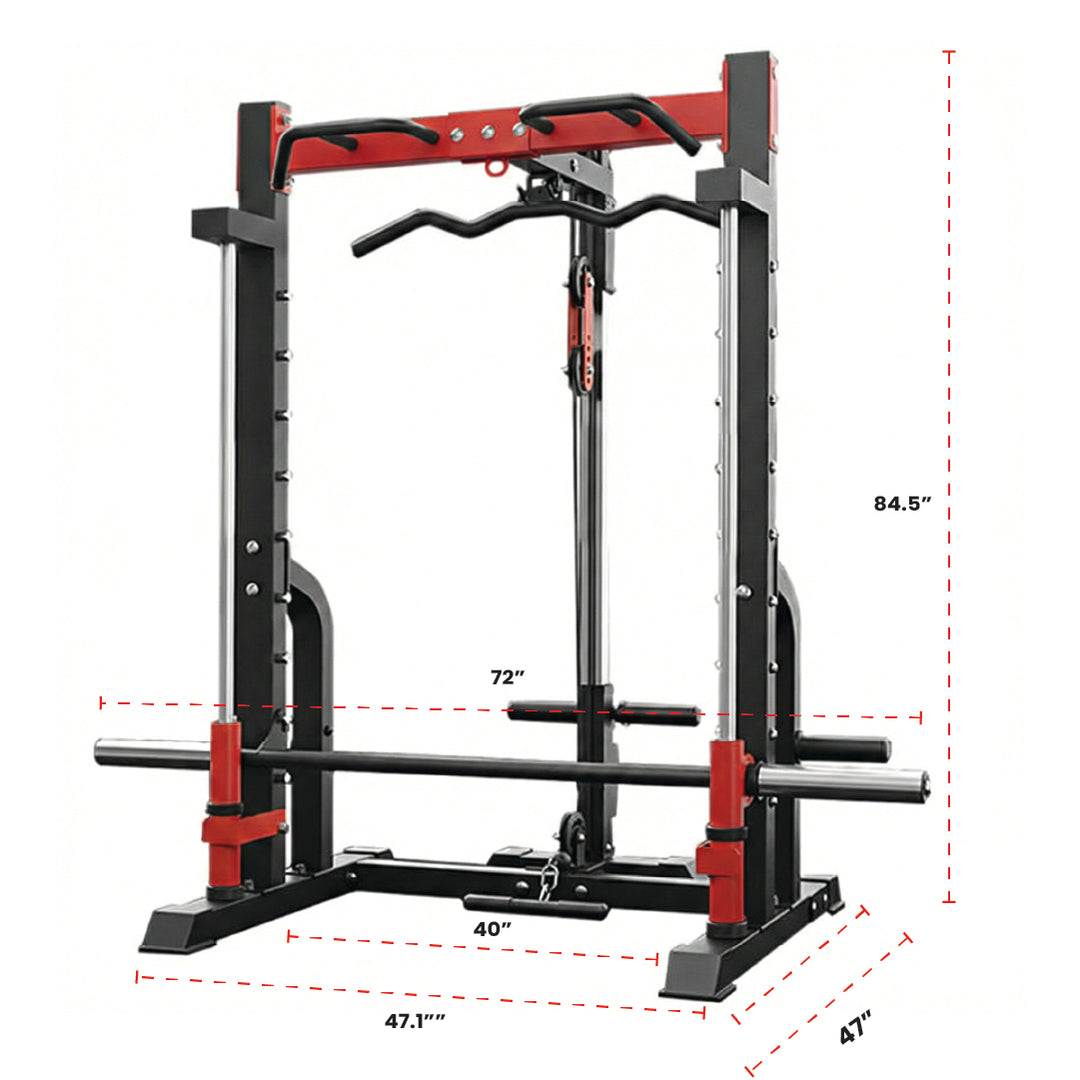

Assembled height
84.5 in (214.6 cm)
Width with bar
72 in (182.9 cm)
Base footprint
47.1 × 47 in
Internal cage width
40 in
Anchoring
Not required — freestanding
Shipping weight
234 lb (106 kg)
Finish
Black and red powder coat
Assembly
One person, no special tools
Delivery
4 numbered boxes, none over 63 lb
Warranty
12 months

Questions people ask

Will my plates fit?

If the hole measures 2 inches / 50 mm, yes — that's standard Olympic sizing, and it applies to the bar sleeves, the loading horns and the storage horns. Older 1″ standard plates need a sleeve adapter.

How much weight can it take?

We recommend up to 250 lb on the Smith bar, 250 lb on the pull-up bar, and 100 lb per loading horn. The Z1 is built for home and small-studio training. If you're pressing beyond that, look at our X-series.

What does the bar itself weigh?

Approximately 30 lb. On any Smith machine the counterbalance means the bar feels lighter than a free barbell, so your loaded number won't match your free-weight number.

Does it have to be bolted to the floor?

No. The Z1 is freestanding on its 47 × 47 in base and needs no floor anchors, so nothing gets drilled into a finished basement floor, a garage slab or a rented unit. Load the two storage horns and the base sits heavier still. Many commercial racks and functional trainers must be anchored before use — the Z1 does not.

Does the machine look exactly like the photos?

The photos show the Z1 accurately in size, layout and finish, and several of them are 3D renderings. Treat the specifications table and the included-attachments list as the definitive description of what ships — if a part appears in a rendering but is not named in those lists, it is not on the machine. If you want to check a specific detail, we will walk you through the actual unit on a WhatsApp video call at +1 855-396-9333 before you order.

Can I bench press in it?

Yes, with an adjustable bench (sold separately). The J-hooks and 9 lockout positions cover flat, incline and decline setups.

Do I need a spotter?

No. Set the Limit Device stops at your bottom position and the bar can't travel past it, so you can take a set to failure on your own.

Is assembly difficult?

No. One person can put the Z1 together — it isn't a complicated build, and every tool you need is in the box. A second pair of hands makes it quicker, mostly for lifting the top section into place.

Does it come with weights?

No — the Z1 is the frame. If you want a machine that arrives with plates or a stack included, look at the X2–X5.
